| Max. Load: | 5000kg | Plattformbreite: | 2.6m |
|---|---|---|---|
| Max. Outboard Length: | 5.3m | Behandlung: | Großrechner u. Stützen sind mit heißes Bad-Galvanisation |
| Malen: | Strahlen u. Epoxidfarbe | ||
| Markieren: | Ladenplattform des Kranes 5ton,Strahlenenkran-Ladenplattform,einziehbare ladende Plattform der Strahlen |
||

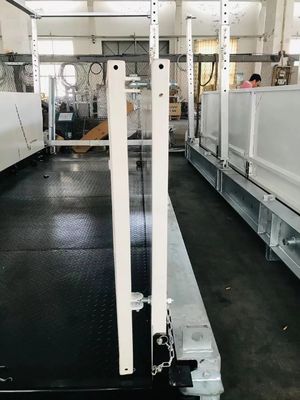

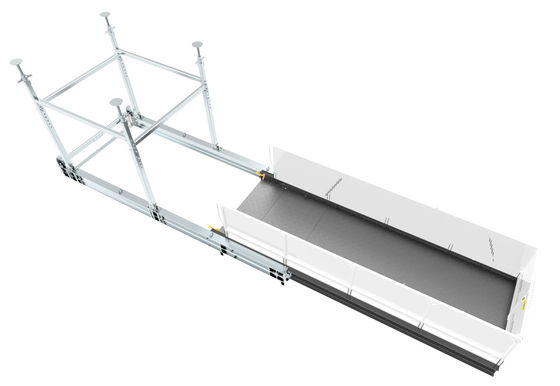

MLP2600-H 5ton Capacity Retractable Super Deck for Multi-Storey Construction Sites
The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes. In the site condition, the “H” frame may keep a distance E from the slab edge. The forces on the building for three different distances “E” are listed in Table 2. According to the different distance “E”, the different max- imum allowable SWL are also listed in Table 2. The SWL corresponding to SWL the different distance E are also painted in the H beam of the stationary frame.
Before installation of the, make sure that the concrete slab and the ceiling of the building must have enough strength to bear the forces RA, RB, RC from the load deck.
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length:5.3m
3. Max. load capacity:5ton
4. Platform width: from 2.6m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier

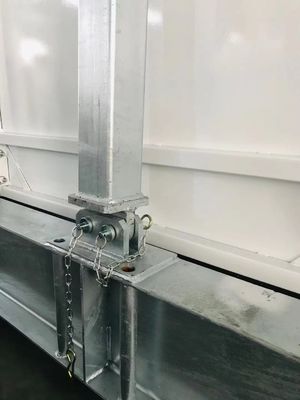

7. With easy locking system
8. All pins are with chains
